Automotive CFD Analysis: From Design Iteration to Validation

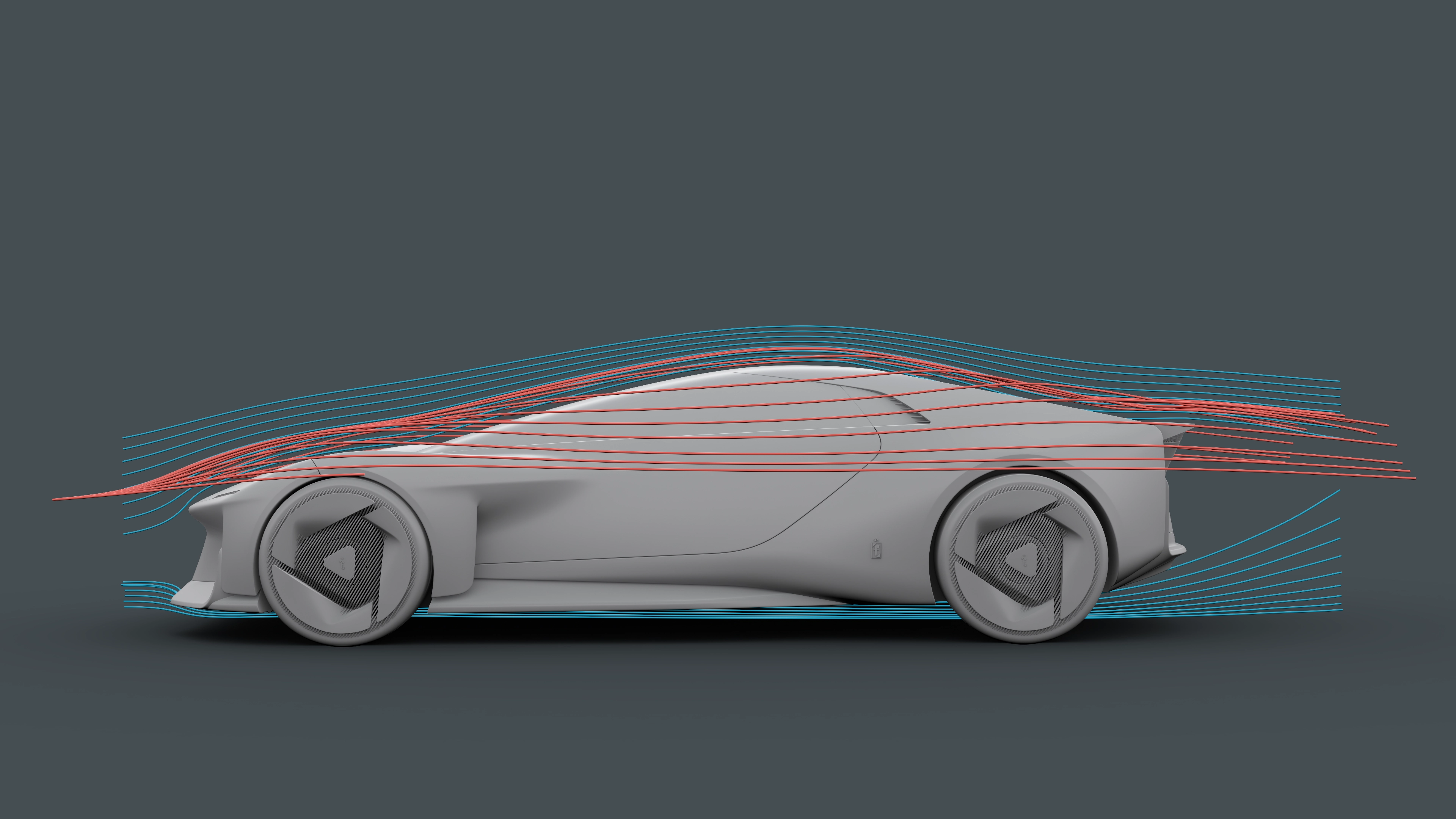

Computational Fluid Dynamics, or CFD, uses numerical models to study the behavior of fluids and the forces they generate. In automotive development, CFD analysis is used to examine airflow around and through a vehicle, component, prototype or early design configuration.

It provides detailed insight into phenomena that can be difficult to isolate during the first stages of development: pressure distribution, flow velocity, vortices, separation, turbulence, wake behavior, thermal management, aeroacoustics and the interaction between the underbody and the road surface.

Its relevance extends well beyond flow visualization. CFD allows a design decision to be connected to measurable physical behavior before a full physical model is produced. Changes to a body surface, air intake, diffuser, underbody treatment or rear-end geometry can be assessed while the design remains open to development.

For design and engineering teams, this creates a more informed basis for comparing alternatives, identifying sensitive areas and deciding which configurations should progress to physical testing.

Aerodynamics influences several dimensions of vehicle performance: energy efficiency, driving range, stability, cooling, wind noise, perceived refinement and overall experience. In electric, luxury, high-performance and transportation programs, these considerations also affect proportion, packaging, thermal architecture and the relationship between form and function.

Automotive CFD analysis can support:

• comparison of alternative design directions;

• evaluation of drag, lift, downforce and aerodynamic balance;

• analysis of underbody airflow and ground effect;

• development of air intakes, ducts and cooling paths;

• identification of vortices, flow separation and turbulent regions;

• investigation of wake structure;

• preparation of targeted wind tunnel and aeroacoustic testing.

This early insight narrows the development field before significant resources are committed to physical prototypes. It also helps teams distinguish between geometries that appear promising and those whose aerodynamic behavior supports the wider program targets.

During the early stages of a vehicle program, geometry changes continuously. Proportions, volumes, surfaces and details are reviewed in parallel, often while several design directions remain under consideration.

At this point, simulation turnaround becomes part of the development cadence. Aerodynamic feedback delivered after the design has largely been resolved may lead to late corrections, greater compromise and more complex engineering changes. Feedback delivered while the form is still evolving can influence the direction of the design more naturally.

Within Pininfarina’s process, aerodynamic feedback can now be returned to the design team within a matter of hours, compared with workflows that once required much of a working day for a simulation cycle. The significance lies in the continuity this creates between design intent, technical constraints and performance objectives.

CFD can therefore accompany the development of the concept rather than waiting for a fixed geometry. It helps identify critical areas, reveal opportunities and establish which design directions warrant deeper investigation.

This is especially valuable for a design house, where aerodynamic performance has to be developed alongside a recognizable formal identity. Faster analysis creates more opportunities to refine both dimensions together, before the cost of change increases.

In a mature aerodynamic development program, CFD is part of a cycle connecting simulation, physical models, testing and technical interpretation.

The process may begin with initial sketches, volumetric data and early design surfaces. Preliminary CFD evaluations are then used to compare alternatives and identify the most credible directions. As the selected design becomes more resolved, a wind tunnel model can be produced and tested under controlled conditions.

A typical development sequence includes:

1. initial sketches and volumetric data;

2. early CFD evaluation;

3. selection of the most promising design direction;

4. production of a wind tunnel model;

5. wind tunnel testing;

6. comparison of numerical and experimental results;

7. further design and engineering iterations;

8. final validation against the original program targets.

Wind tunnel testing provides measurements of aerodynamic forces, pressure distribution, wake behavior, turbulence and, where required, aeroacoustic phenomena. These results can then be compared with the numerical simulation.

The comparison may lead to physical modifications, revised CFD runs or further test cycles. Rather than progressing in a simple linear sequence, the project moves through increasingly precise loops, with each stage adding confidence to the next.

CFD software is widely available. Platforms may be commercial, open-source or supported by methods developed within the broader engineering community. Access to a solver, by itself, does not establish a distinctive capability.

The reliability of automotive CFD analysis depends on the complete workflow around it: geometry preparation, meshing strategy, boundary conditions, turbulence modeling, wheel rotation, ground treatment, result interpretation and reporting. It also depends on the ability to compare numerical predictions with experimental measurements.

CFD-to-wind-tunnel correlation is therefore central to engineering confidence. A simulation may produce highly detailed pressure maps and flow fields, yet those outputs gain practical authority only when their relationship with measurable physical behavior is understood.

For a design house such as Pininfarina, access to a proprietary wind tunnel creates an important advantage. Simulation and testing can be developed within a connected process, allowing the team to investigate discrepancies, refine internal procedures and improve the consistency of the data delivered to the client.

Correlation also helps distinguish between a simulation that is technically plausible and a model that is sufficiently reliable to support a design decision. For senior stakeholders, this distinction matters more than the visual sophistication of the output.

The relevant questions are practical:

• Which design direction reduces aerodynamic risk?

• Which configuration improves performance without weakening the design intent?

• Which finding is robust enough to influence the program?

• Which phenomenon still requires experimental investigation?

• Where should engineering and prototyping resources be concentrated?

A credible CFD workflow provides clearer answers because it connects computational evidence with physical measurement.

The value of CFD is greatest when it goes beyond global coefficients and exposes the local flow behavior shaping vehicle performance.

Drag and energy efficiency

CFD can identify areas associated with greater aerodynamic loss and assess the effect of changes to the front end, windshield, roofline, body sides, wheels, underbody and rear geometry.

For electric vehicles, this relationship is particularly important at medium and higher road speeds, where aerodynamic drag has a substantial effect on energy consumption and usable driving range. The objective is rarely a single low-drag figure; engineers must also consider stability, cooling requirements, packaging and brand character.

Wake behavior, turbulence and ground effect

The rear of a vehicle often generates some of its most complex aerodynamic structures. Flow separation produces vortices and low-pressure regions that influence drag, stability and wind noise.

CFD makes it possible to examine the wake in three dimensions, trace the origin of vortical structures and evaluate how changes in body geometry alter downstream flow.

Underbody analysis introduces another set of interactions. Ride height, floor geometry, wheel flow and diffuser behavior affect the relationship between the vehicle and the road surface. In high-performance applications, these conditions influence downforce and aerodynamic balance; in road-vehicle programs, they also affect efficiency and stability.

Cooling and thermal management

Air intakes, ducts, radiators, brakes, battery packs and electronic systems require controlled airflow. These requirements have to be reconciled with external aerodynamic performance.

A larger opening may improve cooling while increasing drag. A cleaner exterior surface may support efficiency while restricting heat rejection. CFD allows these relationships to be assessed before hardware is produced, giving design, aerodynamics and thermal-engineering teams a shared basis for refinement.

Aeroacoustics and perceived refinement

As powertrains become quieter, airflow-generated noise becomes more perceptible. A-pillars, mirrors, glazing, seals, handles, wheels and local geometric discontinuities may all generate wind noise.

CFD can help locate sensitive regions and identify the flow mechanisms associated with them. Aeroacoustic and wind noise testing remain important, however, because perceived sound quality depends on complex pressure fluctuations, structural transmission paths and the acoustic response of the cabin.

Here again, simulation helps focus the investigation, while physical testing establishes how the phenomenon is experienced in the vehicle.

The appropriate balance depends on the maturity of the geometry, the type of phenomenon under investigation and the decision the program needs to make.

CFD is particularly effective when:

• the design is still changing rapidly;

• several alternatives need to be compared;

• local flow behavior needs to be understood;

• a physical model is not yet available;

• the team needs to prioritize configurations for testing.

Wind tunnel testing becomes central when:

• the geometry has reached a more stable level;

• physical forces and pressures need to be measured;

• simulation assumptions require validation;

• aeroacoustic behavior needs experimental assessment;

• final aerodynamic targets must be confirmed.

For complex vehicle programs, the strongest approach usually combines both. CFD broadens the number of ideas that can be explored; wind tunnel testing provides repeatable measurements; correlation establishes how much confidence can be placed in the computational model.

This integrated process avoids two common weaknesses: treating an unvalidated simulation as conclusive, or entering an expensive physical test program without a sufficiently focused set of hypotheses.

Automotive CFD analysis creates the greatest value while a project can still evolve and aerodynamic insight can influence performance, identity and feasibility. Numerical results, supported by wind tunnel measurements and experimental data, allow weaker alternatives to be eliminated and promising solutions to be developed with greater precision.

For OEMs, design leaders and engineering teams, this reduces uncertainty at the stages where decisions carry the greatest downstream impact. The result is a deeper understanding of the vehicle’s aerodynamic potential, its constraints and the relationships that must be managed across design, engineering and validation.

As efficiency, stability, comfort and formal distinction become increasingly interdependent, the quality of the development process becomes as important as any individual aerodynamic result. CFD contributes by giving teams a faster, more rigorous and more coherent basis for decision-making.

What is automotive CFD analysis?

Automotive CFD analysis uses numerical simulation to study airflow around and through a vehicle. It helps engineers assess drag, lift, aerodynamic balance, wake behavior, cooling, underbody airflow and aeroacoustic phenomena before or alongside physical testing.

How is CFD used in vehicle design?

CFD can be introduced during early design development to compare alternative geometries, identify aerodynamic risks and provide feedback while surfaces and proportions can still be modified.

Does CFD replace wind tunnel testing?

CFD can reduce the number of physical configurations that need to be tested, but wind tunnel testing remains important for experimental measurement and validation. The two methods are most effective when used within a correlated development process.

What is CFD-to-wind-tunnel correlation?

CFD-to-wind-tunnel correlation is the comparison of numerical predictions with experimental measurements. It helps engineers assess the reliability of a simulation and refine the methods used for future design decisions.

When should an automotive program use both CFD and wind tunnel testing?

The combination is particularly valuable in complex programs where multiple concepts must first be explored digitally and selected configurations then require controlled physical validation.
