Ground Effect Aerodynamics: Designing the Space Between Car and Road

Ground effect aerodynamics is one of the most sensitive areas of vehicle design. Long associated with Formula 1 and prototype racing, it has become increasingly relevant to high-performance road cars and electric vehicles, where efficiency, stability and dynamic quality must be developed as a single system.

The principle concerns the way proximity to the road changes airflow around a moving vehicle. Most of this interaction occurs beneath the car, where the underbody, wheels, ride height and rear diffuser shape a narrow and highly dynamic flow field.

The road therefore becomes an active boundary within the aerodynamic system. Its influence can be seen in pressure distribution, downforce, drag, cooling and wake behavior. It can also be felt through high-speed stability, cabin noise and the driver’s perception of control.

Ground effect belongs early in the vehicle-development process, while exterior design, packaging and engineering architecture can still evolve together.

Ground effect is the change in aerodynamic forces created when a body operates close to a surface. In automotive applications, it mainly describes the interaction between underbody airflow and the road.

As a vehicle moves, its surfaces accelerate and redirect the surrounding air. The underbody is especially sensitive because the available space is limited. Small changes in ride height, pitch or floor geometry can alter the pressure field and shift the aerodynamic balance of the car.

In racing, ground effect is primarily associated with downforce: the vertical force that pushes the vehicle toward the track and increases the grip available through the tires. Road-car programs work with a broader set of priorities. Stability, aerodynamic efficiency, ride quality and aeroacoustic comfort all contribute to the final result.

The underbody is therefore a central design surface. Its geometry influences how the vehicle behaves, how efficiently it moves through the air and how confidently it responds at speed.

Ground-effect performance depends on the relationship between airflow velocity, pressure and geometry.

A shaped floor can accelerate the air beneath the vehicle and establish a region of lower pressure. The pressure difference between the upper and lower surfaces then generates a downward aerodynamic force. The rear diffuser supports this process by expanding the underbody flow and managing pressure recovery as the air returns to the surrounding atmosphere.

Flow quality is decisive. When the airflow remains attached and the floor operates within its intended window, the underbody can generate downforce efficiently. Separation or instability can reduce that benefit, increase drag and change the balance between the front and rear axles.

Diffuser geometry therefore requires careful calibration. A more aggressive expansion may increase performance in a specific condition while becoming highly sensitive to vehicle attitude. A more moderate configuration can preserve a wider and more predictable operating range.

This leads to one of the central principles of ground effect design: the design target is not peak downforce at a single ride height; it is stable aerodynamic performance across the vehicle’s operating envelope.

Motorsports demonstrated the performance potential of using the floor as an aerodynamic device. Road vehicles apply the same physical principles under different constraints.

A production car encounters variable road surfaces, changing loads, crosswinds and suspension movement. It must also meet requirements related to comfort, cooling, durability, manufacturing and certification. The aerodynamic system must retain a coherent response while these conditions change.

Ground effect can support several road-car objectives:

• improved high-speed stability;

• controlled lift and aerodynamic balance;

• reduced dependence on visually dominant wings;

• more efficient management of underbody airflow;

• closer integration between aerodynamics and vehicle design.

For premium and high-performance vehicles, this integration has particular value. The underbody can deliver aerodynamic performance while preserving the clarity of the exterior form. Technical function becomes embedded in the vehicle architecture rather than added as a visible layer.

Ground effect depends on the interaction of geometry, vehicle attitude and incoming airflow.

Ride height and vehicle attitude

A lower ride height can strengthen the interaction between the floor and the road. It also narrows the operating window. Pitch, roll and vertical movement continually alter the volume beneath the car, affecting pressure distribution and aerodynamic balance.

Suspension development and aerodynamics therefore become closely connected. The chassis must keep the floor within a productive range without compromising ride quality or real-world usability.

Underbody geometry

The floor and diffuser guide the airflow beneath the vehicle. Their performance depends on gradual changes in section, effective pressure recovery and control of flow separation.

Small geometric changes can produce meaningful differences because the underbody operates so close to the road. Packaging decisions around structural members, cooling systems and protective components must therefore be considered aerodynamically.

Wheels and wheel wakes

Rotating wheels create complex, energetic flow structures. Their wakes interact with the wheel wells, floor edges and rear diffuser, influencing both drag and downforce.

Accurate wheel representation is particularly important when correlating CFD analysis with physical testing. Simplified wheel conditions can obscure interactions that become significant on the road.

Real-world airflow

Vehicles rarely travel through perfectly uniform air. Traffic wakes, crosswinds and gusts continually alter the incoming flow.

A robust aerodynamic solution maintains predictable behavior under these disturbances. This is especially relevant to road cars, where usable stability carries more value than an isolated peak measured under ideal conditions.

Electric vehicle aerodynamics is often discussed in terms of drag reduction and driving range. The underbody creates a broader design opportunity.

Battery packs can support flatter lower surfaces, making the flow path more continuous. At the same time, they introduce structural, thermal and safety requirements. The floor must accommodate battery protection, cooling, suspension hard points and crash structures while maintaining aerodynamic quality.

Ground effect therefore becomes an architectural issue. Aerodynamic performance depends on decisions made across the entire vehicle platform.

A well-integrated underbody can contribute to stability and efficiency without relying on conspicuous external devices. This is especially valuable for premium EVs, where aerodynamic function must coexist with visual refinement and cabin comfort.

The development target should extend beyond a low drag coefficient. Teams need to understand how the underbody influences lift, balance, cooling and sensitivity to changing ride conditions.

Ground-effect performance is closely linked to the position of the body relative to the road. Active suspension and movable aerodynamic systems create new opportunities to manage this relationship.

Ride-height control can place the vehicle within different aerodynamic windows according to speed or driving mode. Active surfaces can redistribute flow, modify balance or support braking and cooling requirements.

These technologies also increase system complexity. Aerodynamics, suspension, control software and vehicle dynamics must operate as a coordinated platform. Changes in one area can affect pressure distribution, thermal performance and driver confidence elsewhere.

The strategic opportunity lies in coordination. Ground effect becomes more useful when the vehicle can preserve its aerodynamic qualities across road, track and transient driving conditions.

CFD analysis allows development teams to examine underbody airflow before committing to a physical prototype. Engineers can compare geometries, study pressure fields and identify regions of separation or high sensitivity.

Reliable simulation requires representative boundary conditions. Moving ground, rotating wheels, vehicle attitude and turbulence modeling can significantly affect the predicted result.

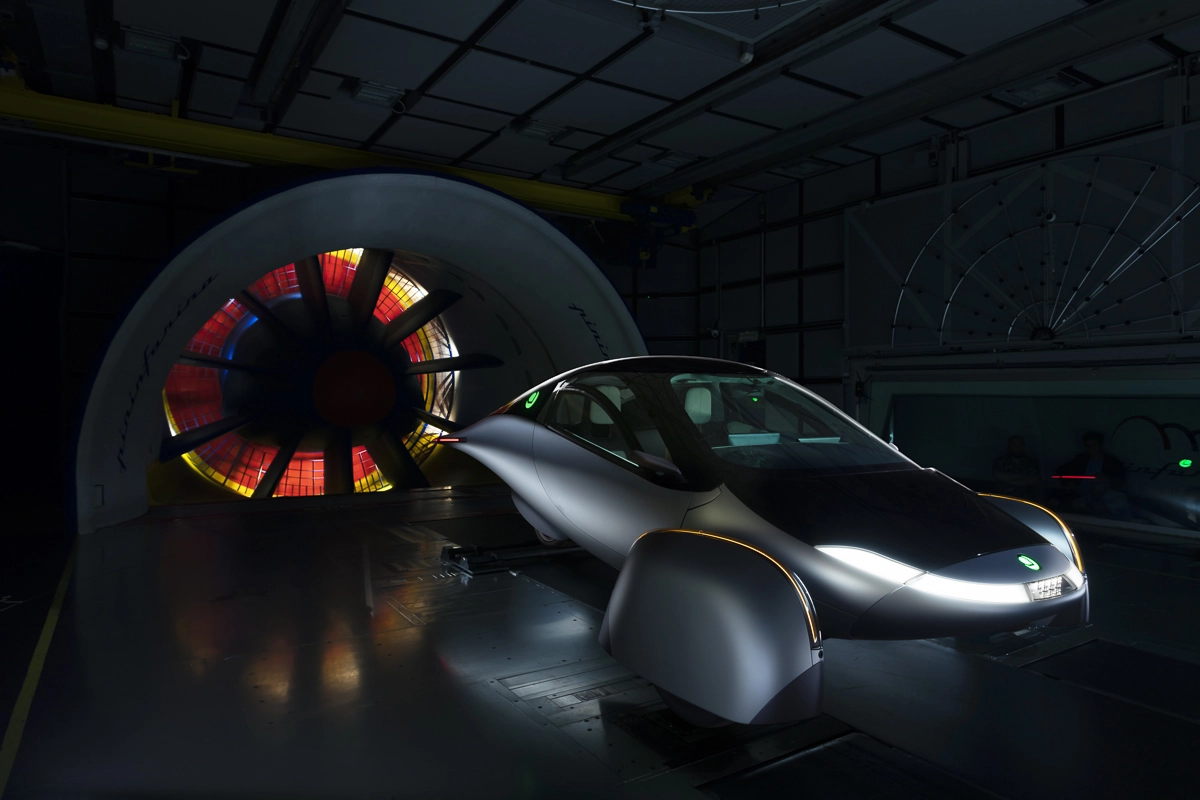

Wind tunnel testing provides the physical correlation needed to assess these assumptions. For ground-effect development, moving-ground or rolling-road systems reproduce the relative motion between the vehicle and the road more accurately than a stationary floor.

The two methods serve different stages of the same process. CFD supports exploration and iteration; physical testing measures and validates. Their correlation establishes confidence that the aerodynamic concept remains effective outside a single digital or experimental condition.

Underbody airflow continues to influence the vehicle after it leaves the rear diffuser. The way the flow recombines affects wake structure, drag and stability.

Wake measurements can reveal whether an underbody solution has improved the overall pressure field or transferred instability farther downstream. They are also relevant to traffic interaction, particularly when a vehicle operates in the disturbed flow produced by another road user.

Aeroacoustics adds another dimension. Electric powertrains reduce the masking effect of engine noise, making aerodynamic sources more noticeable inside the cabin. Flow around the floor edges, wheels and body discontinuities can influence perceived refinement.

For this reason, ground effect contributes to more than performance metrics. It can shape quietness, comfort and the sense of solidity that defines a premium vehicle at speed.

Drivers do not experience aerodynamic coefficients directly. They experience the vehicle’s response.

A car may achieve favorable drag or downforce values under controlled conditions and still feel uncertain if its aerodynamic balance changes abruptly on the road. Consistency matters during braking, cornering, crosswinds and changes in ride height.

Perceived stability is therefore part of aerodynamic quality. Precision, quietness and control influence the way users interpret the entire product.

This is particularly important in performance and luxury vehicles. Good aerodynamics often remains visually discreet, yet it becomes evident through the way the car settles, responds and communicates confidence.

Ground effect connects disciplines that are often developed separately.

A change to the floor may improve aerodynamic efficiency while reducing space for cooling or battery protection. A larger diffuser may increase downforce and reshape the rear proportions. A concept that performs well in CFD may require refinement for manufacturing, durability or real-world ride conditions.

These relationships make ground effect a clear example of design-driven engineering. Physics, product identity and industrial feasibility must evolve together.

The strongest solutions convert aerodynamic complexity into a coherent product architecture. They deliver measurable performance while preserving the vehicle’s character, usability and formal clarity.

As mobility platforms become more integrated, the strategic value of ground effect will depend on this capacity for synthesis. The opportunity extends well beyond generating more downforce. It lies in designing a controlled and intelligent relationship between vehicle, air and road.

What is ground effect in automotive design?

Ground effect is the change in aerodynamic forces created by the interaction between a vehicle’s underbody airflow and the road surface. It can influence downforce, drag, stability and aerodynamic balance.

How does a car generate ground-effect downforce?

A shaped underbody accelerates and controls the airflow beneath the vehicle, creating a lower-pressure region. The pressure difference produces a downward aerodynamic force, while the diffuser manages the flow as it exits the rear of the car.

Is ground effect used only in race cars?

Ground effect is most visible in motorsports, but road cars also use underbody aerodynamics to manage lift, stability, efficiency and airflow around the wheels. Its application is especially relevant to high-performance vehicles and EVs.

Why is ride height important for ground effect?

Ride height changes the available space beneath the vehicle and therefore affects airflow velocity, pressure and flow attachment. A ground-effect system must remain predictable as the vehicle pitches, rolls and moves vertically.

How does ground effect improve electric vehicle design?

A well-developed underbody can improve aerodynamic efficiency and stability. EV platforms may benefit from relatively flat battery-pack surfaces, although cooling, protection and structural requirements must also be integrated.

Can CFD fully replace wind tunnel testing?

CFD supports rapid exploration and detailed flow analysis. Wind tunnel testing provides physical correlation under controlled conditions. Advanced vehicle programs generally use both to validate ground-effect performance.

What is the difference between ground effect and downforce?

Ground effect is the aerodynamic interaction between a vehicle and the road. Downforce is one possible outcome of that interaction: a vertical force that pushes the vehicle toward the road.
